What is Organic Solderability Preservative

calendar_month
2022-05-21

History of Organic Solderability Preservative

In the last few years, digital items are establishing in the direction of light, slim, brief, miniaturized as well as multi-functional. At the same time, PCB is likewise establishing in the direction of high accuracy, broadband, high thickness, and so forth. Particularly, the fast growth of SMT makes the hot air progressing procedure progressively inadequate to the needs of the PCB production procedure. At the same time, the welding product, such as Sn-Pb, utilized in the hot air progressing procedure likewise stops working to satisfy the environmental management demands. With the main execution of the European lively bonds to copper and also secures the copper up until soldering. In straightforward terms, OSP is a chemical procedure to expand a layer of natural finishing on the tidy bare copper surface area, which has anti-oxidation, warm shock as well as wetness resistance, to secure the copper surface area from corrosion (oxidation or vulcanization, and so on) in the typical atmosphere. Nevertheless, at succeeding welding temperature levels, the safety movie should be quickly eliminated by the change, to make sure that the revealed tidy copper surface area can be instantly incorporated with the liquified solder to create a strong solder place in a really short time.

Quick Intro

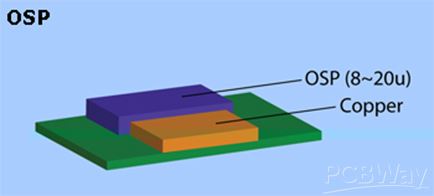

Organic Solderability Preservative(OSP) is a procedure for surface area therapy of published circuit board (PCB) copper aluminum foil according to RoHS guidelines, which utilizes a water-based natural substance that corrosion (oxidation or vulcanization, and so on) in a typical atmosphere. Nevertheless, at succeeding welding temperature levels, the safety movie needs to be conveniently eliminated by the change, to ensure that the subjected tidy copper surface area can be quickly incorporated with the liquified solder to create a strong solder area in a really short time.

Key Products of OSP

  1. 1. Rosin
  2. 2. Energetic material
  3. 3. Azole

Technical Refine:

The quick procedure of OSP is as adheres to:

( If you wish to know even more regarding the production procedure, please go here: PCBWay YouTube Authorities Account).

Oil Elimination → Second-level Cleaning → Micro-corrosion → Second-level Cleaning → Acid Cleaning → DI Laundering → Movie Development → DI Laundering → Dry.

1. Oil Elimination:

The impact of oil elimination straight influences the high quality of movie development. Poor oil elimination, leading to unequal movie density. On the one hand, the focus can be regulated within the procedure array by evaluating the remedy. On the other hand, constantly examine the oil elimination impact is excellent, if the oil elimination impact is bad, it must be changed in time.

2. Micro-corrosion:

The function of Micro-corrosion is to create an unrefined copper surface area which is simple to the movie development. The density of the micro-corrosion straight impact the film-forming price, for that reason, to create a steady movie density, it is really essential to preserve the security of micro-corrosion density. The basic micro-corrosion density will be managed at 1.0 to 1.5 which is better suited, to make sure that prior to each manufacturing, the micro-corrosion price can be gauged, and also the micro-corrosion time can be figured out according to the micro-corrosion price.

3. Movie Development:

It would certainly be much better to utilize the DI cleaning both prior to and also after the movie development and also the PH needs to be restricted to in between 4.0 as well as 7.0 to avoid contamination of the movie creating remedy. The secret of the OSP procedure is to manage the density of anti-oxidation movies which can conveniently impact welding efficiency. Typically, the movie density is appropriate in between 0.2-0.5. For instance, the thinner the movie is, the poorer the thermal shock ability will certainly be.

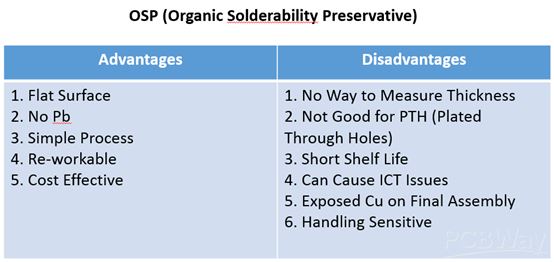

Drawbacks of OSP

OSP definitely has its imperfections, such as the range of real dishes as well as efficiency. What’s even more, the safety movie is exceptionally slim as well as vulnerable to scrapes (or swellings) as well as has to be meticulously adjusted as well as transferred. At the same time, OSP movie (OSP movie on the unwelded plate) will certainly transform shade or fracture, which will certainly influence weldability and also integrity. That is to claim, the accreditation as well as various markets in regards to high quality, shipment, cost-effectiveness, and also any other requiring demands.
